UY38 PSFB Series — Data Sheet | Champs Technologies

Key features & specifications

TopologyPSFB — FWCT / Current Doubler

Power Range600–1200 W

Input210–440 V (260–420 / 330–420 V groups)

Freq. Range200–300 kHz

Package25 × 48 × 10–12 mm (W×L×H)

TurnsInteger 1T–40T available

TerminationsSMT · TH · pad-to-pad · thermal pad

EmbeddedPlanar windings in main-module PCB

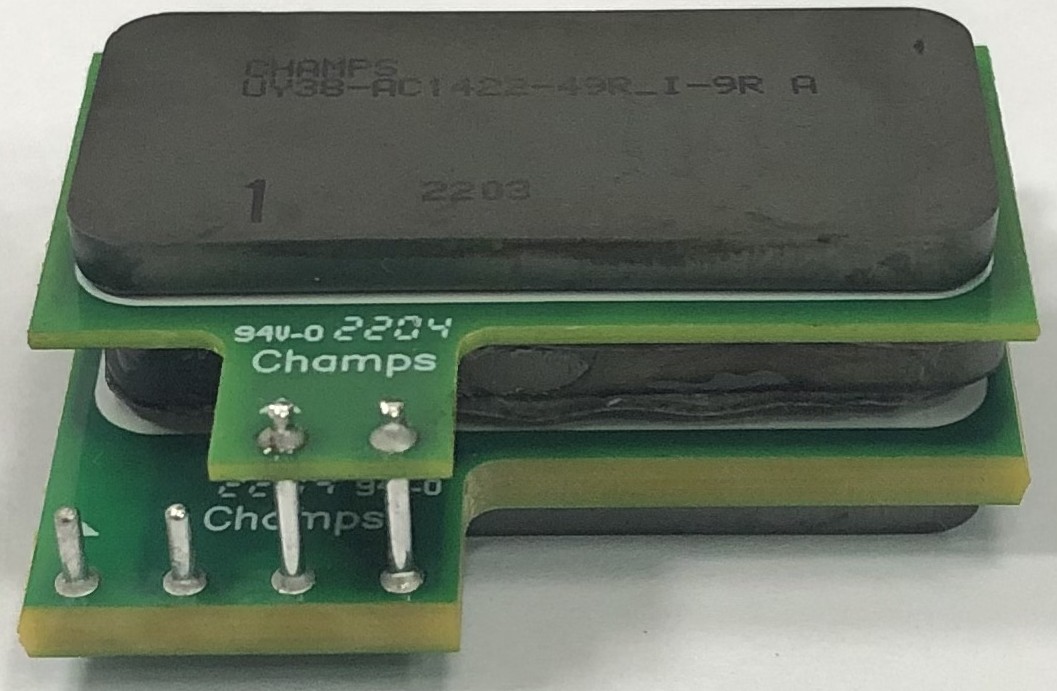

Phase-shift full-bridge transformers for current-doubler and full-wave center-tap (FWCT) outputs. Multilayer PCB windings optimized for low AC resistance and proximity loss. See the Reference Designs page for UY38-based demo-board part numbers.

Part number & parameter table

All values at T_amb = 25 °C unless noted. TH = thru-hole option. Where a base part number carries both FWCT and current-doubler configurations, order per your schematic — contact applications engineering to confirm.

Champs PN	Vin range (V)	Vout (V)	Iout (A)	Pout (W)	Freq (kHz)	Duty	Variants / notes
UY38-1216-250D-10mm	210–440	250	4.0	1000	300	92%	TH: UY38-1216-250D-TH-10mm
UY38-100202-250D	210–440	17	65	1100	300	83.4%	TH: UY38-100202-TH-250D
UY38-160202-250D	260–420	28	21.5	600	200	88.7%	TH: -TH-250D · -250D-10mm · -TH-250D-10mm
UY38-240404-250D	340–420	25	48	1200	200	91.0%	FWCT · TH variant
UY38-240404-250D	330–420	48	25	1200	200	90.0%	Current Doubler · TH variant

Download Data Sheet (PDF)

Champs-Tech UY38 PSFB · Series datasheet · 2024/2026Custom variants —

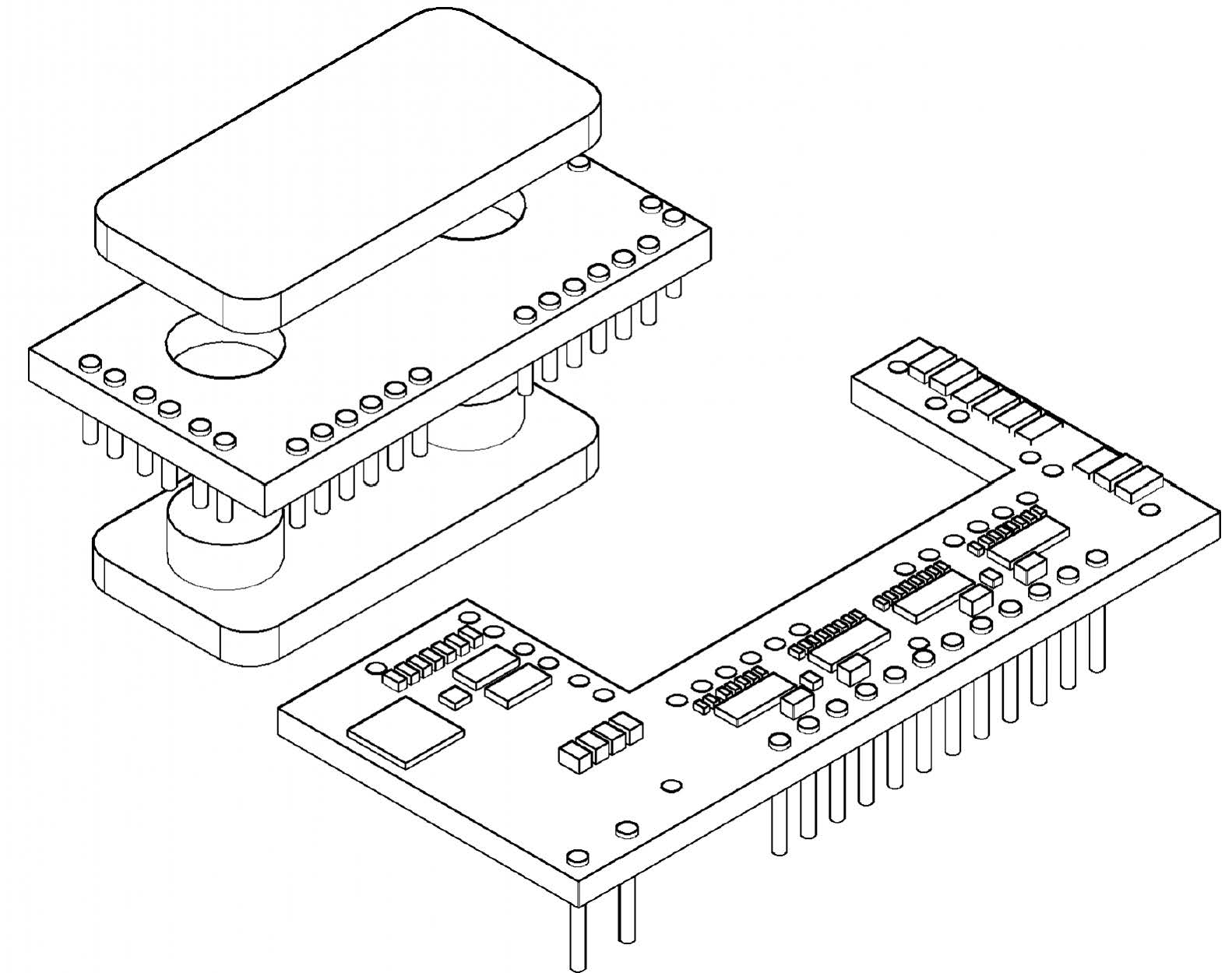

Mechanical outline & options

General notes

Topology: phase-shift full bridge (PSFB) to current doubler and FWCT DC-DC converter applications.
Adding thermal pads in combination with heat sinks and clamps allows higher power throughput at rated ambient and hot-spot temperatures.
Package: 25 mm wide × 48 mm long × 10–12 mm high.
Multilayer PCB winding optimization for lowest AC resistance and proximity-loss effect.
Integer turns from 1T to 40T are available.
All designs can be supplied with planar windings embedded in the PCB of the converter main module; installed power components, SMT assembly, heatsink and module integration available.
A wide variety of part numbers, designs and turns ratios is kept in stock — if not listed, contact us.

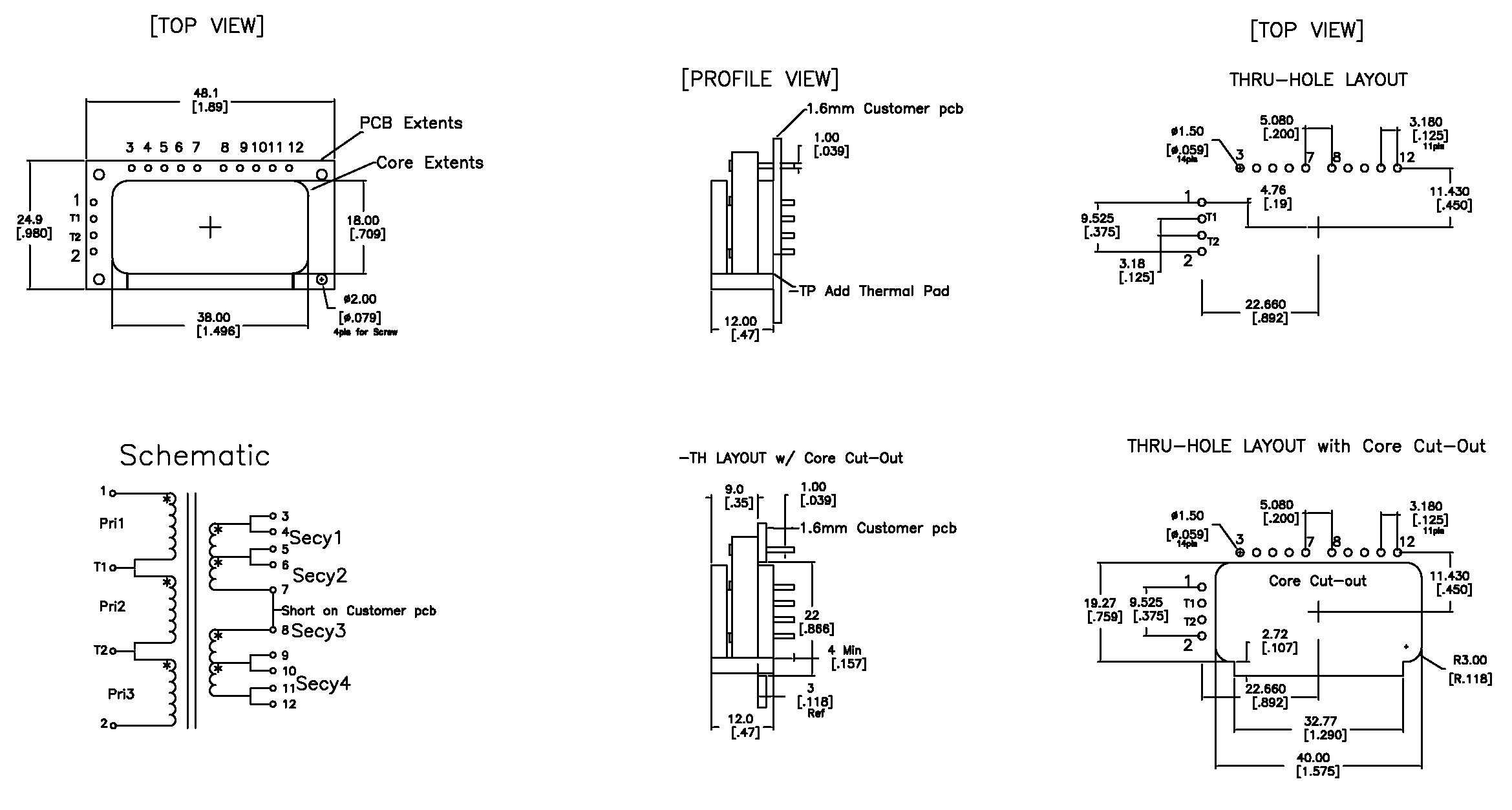

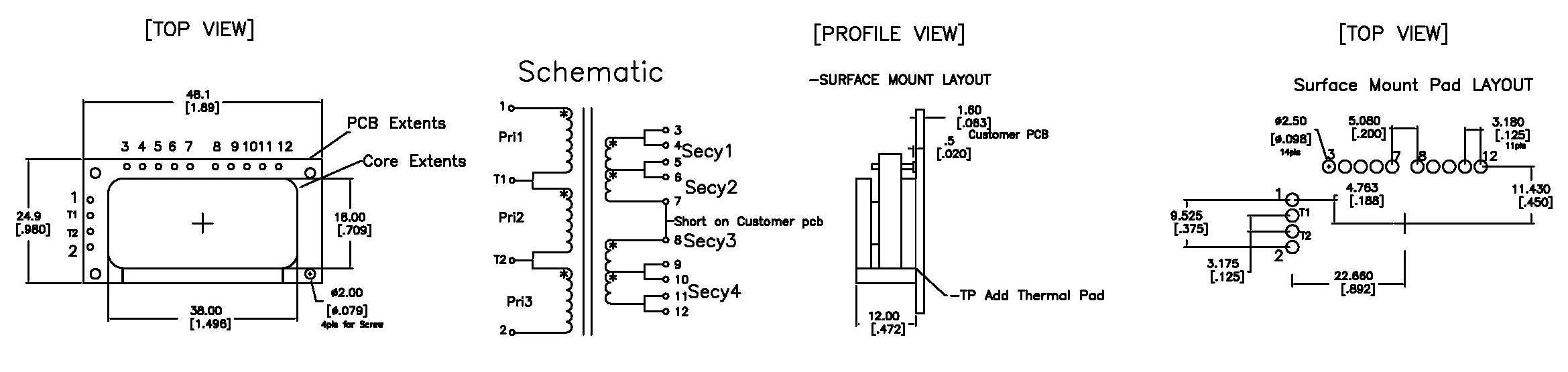

Options: surface mount, thru-hole, pad-to-pad, thermal pad and embedded planar windings.
