LT8230 based MB Flyback 10-30 Vin Main Board and Modules
Production information

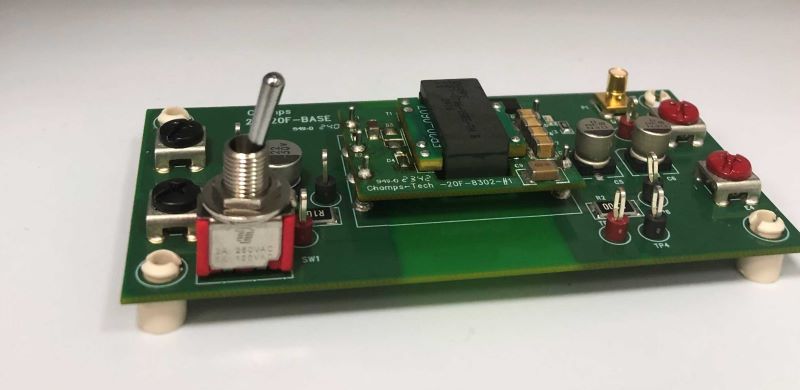

Champs-Tech 20F1 BM Flyback DC-DC Module & BaseBoard
- Wide Input Voltage [10-38 Vin]
- Low Profile: 7.0mm Height [Defined by Transformer]
- Output Power Typical 3-20W [Defined by Vin]
- Efficiency 90% Typical 92% Peak over wide Load.
- Quasi-Resonant Flyback Boundary Mode Topology
- Positive Logic On|Off Control option
- Low Output Ripple & Noise
- RoHS & REACH Compliant
- Temperature Range: -40C to +85C
- Output Power capability is optimized by transformer turns ratios. Multiple transformers available with turns ratios 20:1
- Champs-Tech will provide a completed DC-DC module based on this or modified design in any package desired. Contact Us.
